Professional washing machine TOLON TWE 15, load 15 kg

Professional washing machine TOLON TWE 15, load 15 kg

Manufacturer: TOLON
Country: Turkey
Model: TWE 15
Load (kg): 15
Capacity (kg/h): 23
Total cycle time (min): 40-45
Drum capacity (l): 154
Spin speed (rpm): 1012
G-factor: 360
Net weight (kg): 430

Description

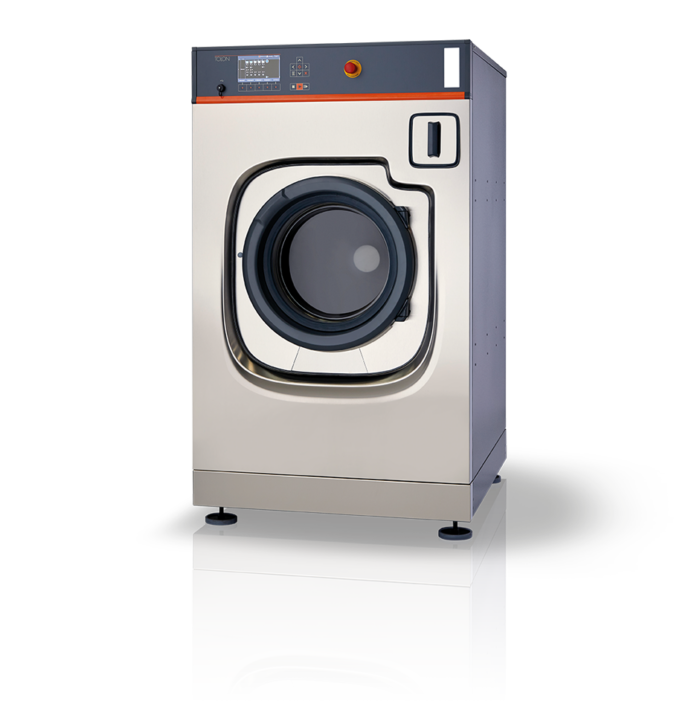

The TOLON TWE 15 professional high-speed washing machine can be easily programmed to wash different types of laundry thanks to its clear electronic control. The entire washing process can be monitored on the screen on the front of the machine. Compact and efficient, the TOLON TWE 15 high-speed washing machine fully meets the needs of both small laundry and commercial laundry. The washing machine is easy to install and maintain. The design of the machine body has been thoughtfully designed to maximize space saving.

Standard features:

  • Freestanding high speed washing machine with full spin cycle;
  • The compact and modern design is suitable for small laundry rooms;
  • The large laundry loading and unloading door opens at 180°, giving easy access to the machine’s drum;
  • The container for powders and liquid chemicals consists of 5 compartments;
  • Preparation for liquid chemistry supply as standard;
  • Drum, front and top panels in AISI 304 stainless steel;
  • The ceramic-coated carrier shaft ensures long service life by reducing the friction of the sealing surfaces;
  • Convenient and easy operation with a large 7″ color screen gives you complete control over the washing process;
  • The front panel of the machine is equipped with USB for connection to a computer and data transfer in .csv format;
  • A simple and straightforward guide to eliminating errors in the laundry process;
  • Indicator lights allow you to monitor the status of the machine;
  • Large diameter drain valve (3″ size) for quick drainage;
  • Heat resistant plexiglass double glazing;
  • Vibration sensor for perfect balancing;
  • Programmer with 18 preset programs and 99 cells for individual washing programs;
  • Flexible hoses for water supply;

Options:

  • Possibility of combined heating – electric and steam;
  • Stainless steel side panels;
  • Stainless steel back panel;
  • Third inlet valve for soft water connection;
  • Pneumatic water valves;
  • Pneumatic steam valve;
  • Pedestal to increase the loading height, ergonomics when using laundry carts;
  • Enlarged water inlet valves (cold and hot);
  • Improved noise insulation;
  • Special voltage (instead of 380-400V);

Completion of high-speed professional washing machine TOLON TWE 15: without heating/electricity/steam/combined heating – electricity/steam, drum, front, top panel of stainless steel, power 12 kW, programmable automatic control, water – cold and hot, container for powders and liquid chemicals, drain pump.

The TOLON TWE 15 will be an excellent choice for dry cleaning, hotel laundry, factory laundry, hospital laundry, mini laundry, commercial and industrial laundry.

Additional information

ПРОИЗВОДИТЕЛЬ:

Tolon

СТРАНА:

Turkey

МОДЕЛЬ:

TWE 15

ТИП ОБОРУДОВАНИЯ:

TOLON high-speed washing machines

ЗАГРУЗКА, кг:

15

ПРОИЗВОДИТЕЛЬНОСТЬ, кг/ч:

23

ПОЛНОЕ ВРЕМЯ ЦИКЛА, мин:

40-45

ДИАМЕТР БАРАБАНА, мм:

630

ГЛУБИНА БАРАБАНА, мм:

495

ОБЪЁМ БАРАБАНА, л:

154

СКОРОСТЬ ПРИ СТИРКЕ, об/мин:

34

СКОРОСТЬ ПРИ ОТЖИМЕ, об/мин:

1012

G-ФАКТОР:

360

ДИАМЕТР ЗАГРУЗОЧНОГО ЛЮКА:

455

МОЩНОСТЬ, кВт:

12

РАБОЧЕЕ ДАВЛЕНИЕ ПАРА, бар:

4

ПОТРЕБЛЕНИЕ ЭЛЕКТРОЭНЕРГИИ

1,35

РАСХОД ЭНЕРГИИ ДВИГАТЕЛЬ

2,2

ПАРОВОЙ КЛАПАН ДИАМЕТР

15-1/2"

ДАВЛЕНИЕ ПАРА, кПа:

200-600

РАСХОД ПАРА, кг/цикл:

7,5

ВЫВОД ВОЗДУХА

8, option

ПОДСОЕДИНЕНИЕ ВОДЫ

2×20-3/4"

ДАВЛЕНИЕ ВОДЫ, кПа:

200-400

СКОРОСТЬ ЗАЛИВА, л/мин:

120

ПОТРЕБЛЕНИЕ ВОДЫ (ХОЛ. + ГОР.), л:

111+31

ПОДСОЕДИНЕНИЕ СЛИВА мм

76

СКОРОСТЬ СЛИВА, л/мин:

230

ТИП НАГРЕВА:

combined – electricity/steam, electric, steam, without heating

УРОВЕНЬ ШУМА, дБ:

62-72

ГАБАРИТНЫЕ РАЗМЕРЫ Ш*Г*В, мм:

880*1122*1485

ВЕС, кг:

430
